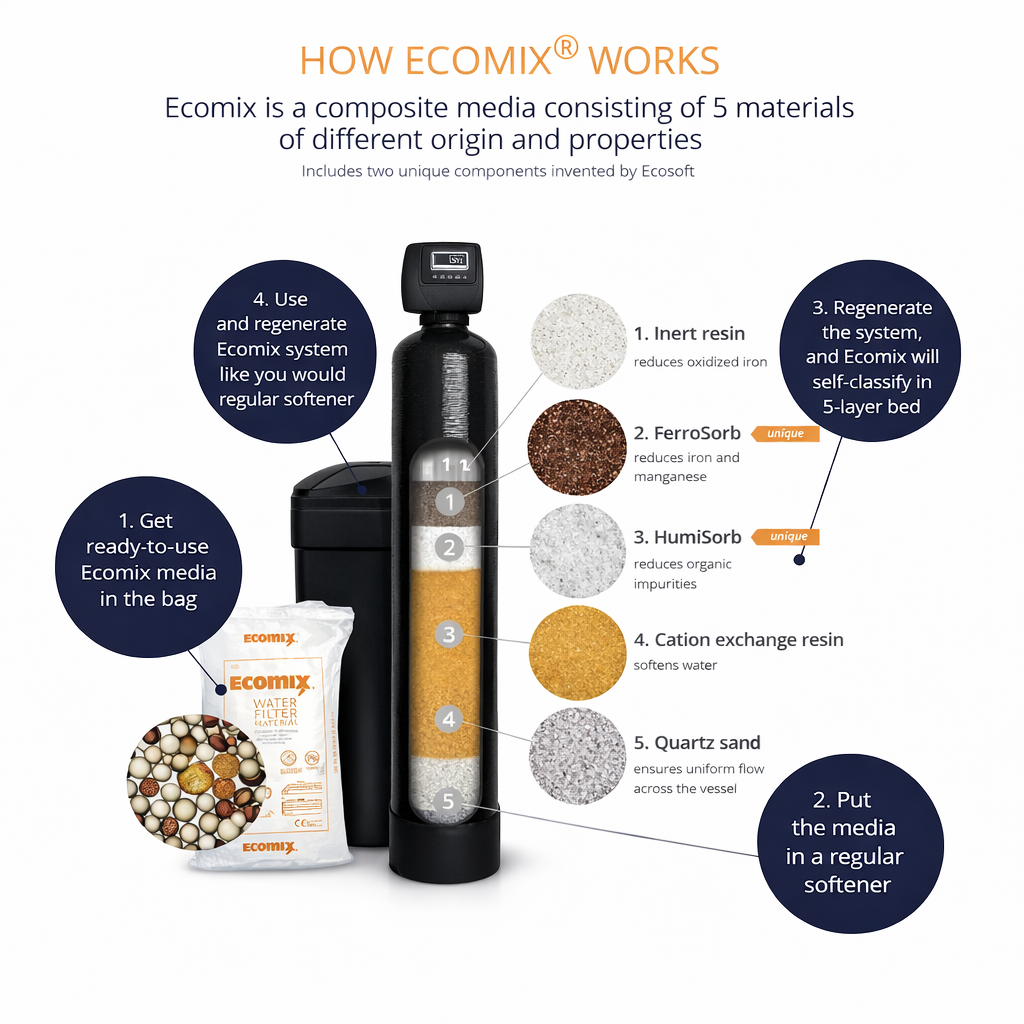

The Ecomix system is designed for problem water where more than just hardness needs to be addressed. Ecomix is a 5-component composite media that combines inert resin, FerroSorb, HumiSorb, cation exchange resin, and quartz sand to treat multiple water issues in one system. It is designed to reduce hardness, ferrous/ferric/organic/colloidal iron, manganese, tannins, and ammonium, making it a practical option for many private well applications.

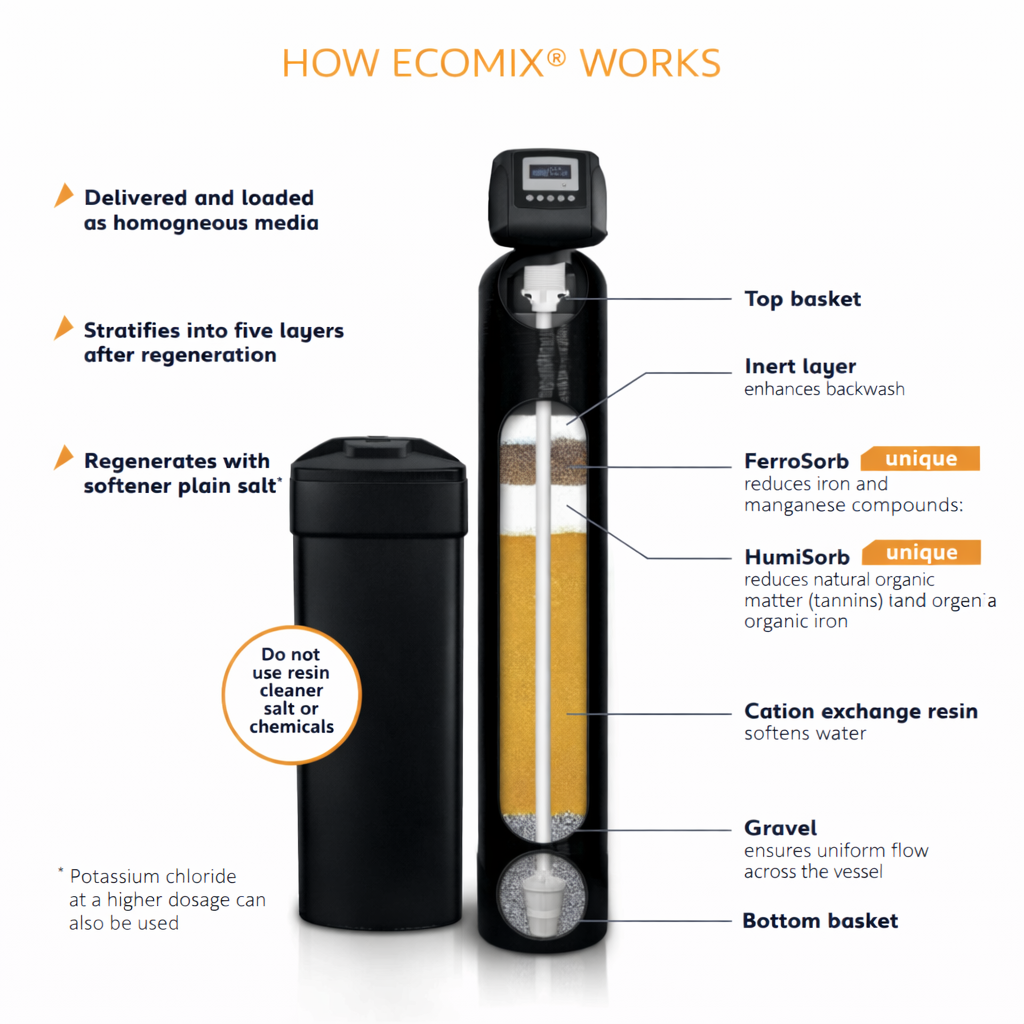

Unlike a standard softener media, Ecomix self-classifies into a 5-layer bed during regeneration and is regenerated like a regular softener using backwash, brine, rinse, and fill. The manufacturer notes that Ecomix performs best when raw water is fed directly to the unit and advises not using oxidative pre-treatment ahead of the system.
This compact version uses a 9" x 48" mineral tank, one bag of Ecomix media, and a 2.2 GPM DLFC.
Key Features
- All-in-one treatment media for hardness, iron, manganese, tannins, and ammonium
- Uses a compact 9" x 48" mineral tank
- Requires one bag of Ecomix media
- Approximate system capacity: 11,500 grains
- Approximate salt per regeneration: 5.5 lbs
- Built with a 2.2 GPM DLFC
- Regenerates like a standard softener
- Compact footprint compared to multiple separate treatment units
- Helps reduce staining, hardness scale, and discoloured water concerns
- Media lifespan is typically 3–5 years, depending on water chemistry and usage
- Built with a metered Clack WS1 CC valve
Influent Water Limits
This system should only be used where raw water is within Ecomix’s published operating limits:
- Hardness: up to 45 gpg
- Iron: up to 15 ppm
- Manganese: up to 3 ppm
- Tannins: up to 5 ppm
- Ammonium: up to 4 ppm
Water chemistry should always be reviewed before sizing or recommending an Ecomix system.
Suggested Installation Notes
- Input the raw water hardness into the control valve settings
- Regenerate the system after installation
- Recommended feed pressure is 40–60 psi
- Drain line should not exceed 8 ft
- A sediment pre-filter is recommended; for high turbidity or iron above 10 ppm
Request Pricing / More Information
This product requires an inquiry before purchase due to brand policies. Complete the form below and our team will follow up promptly with pricing, availability, and any recommendations you may need.
