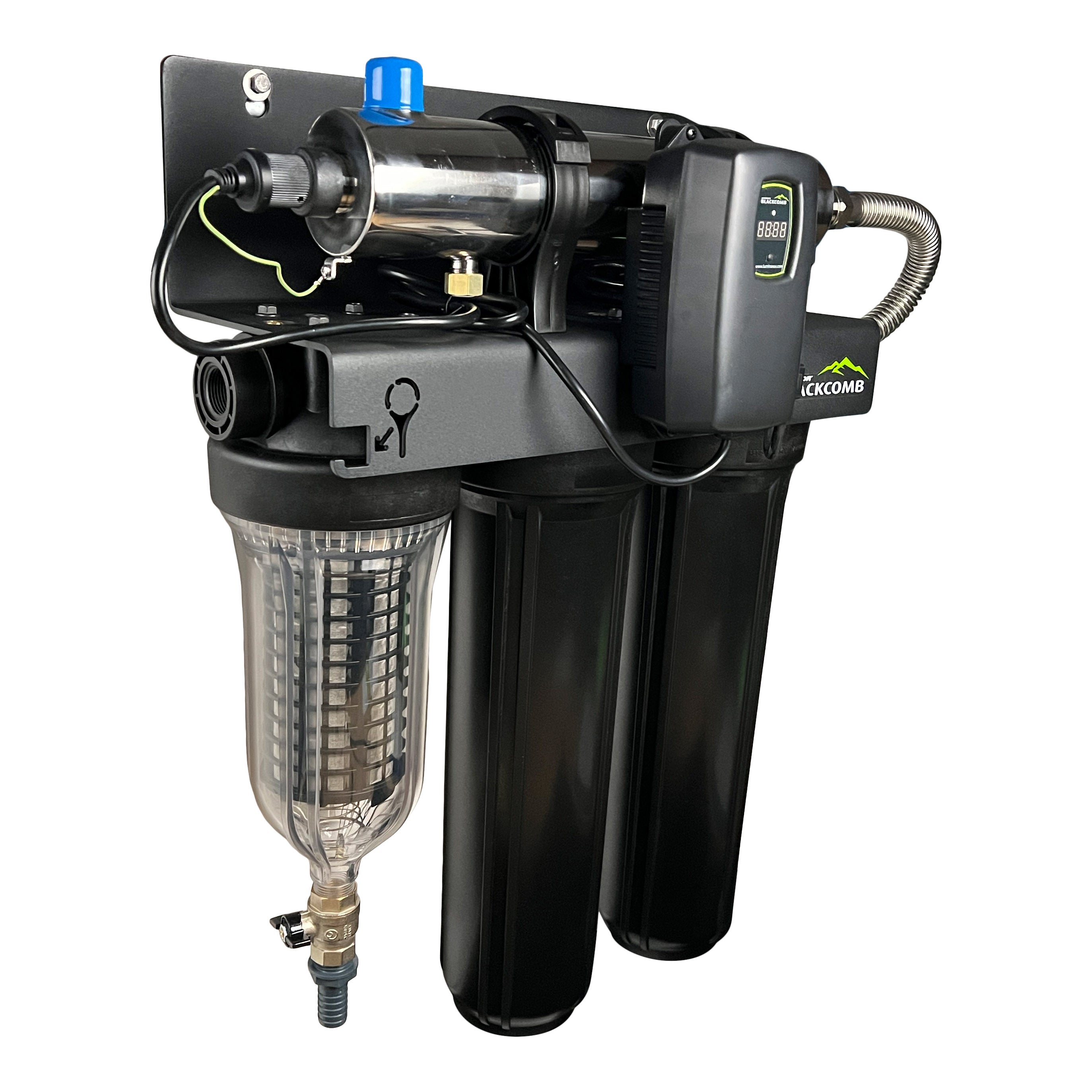

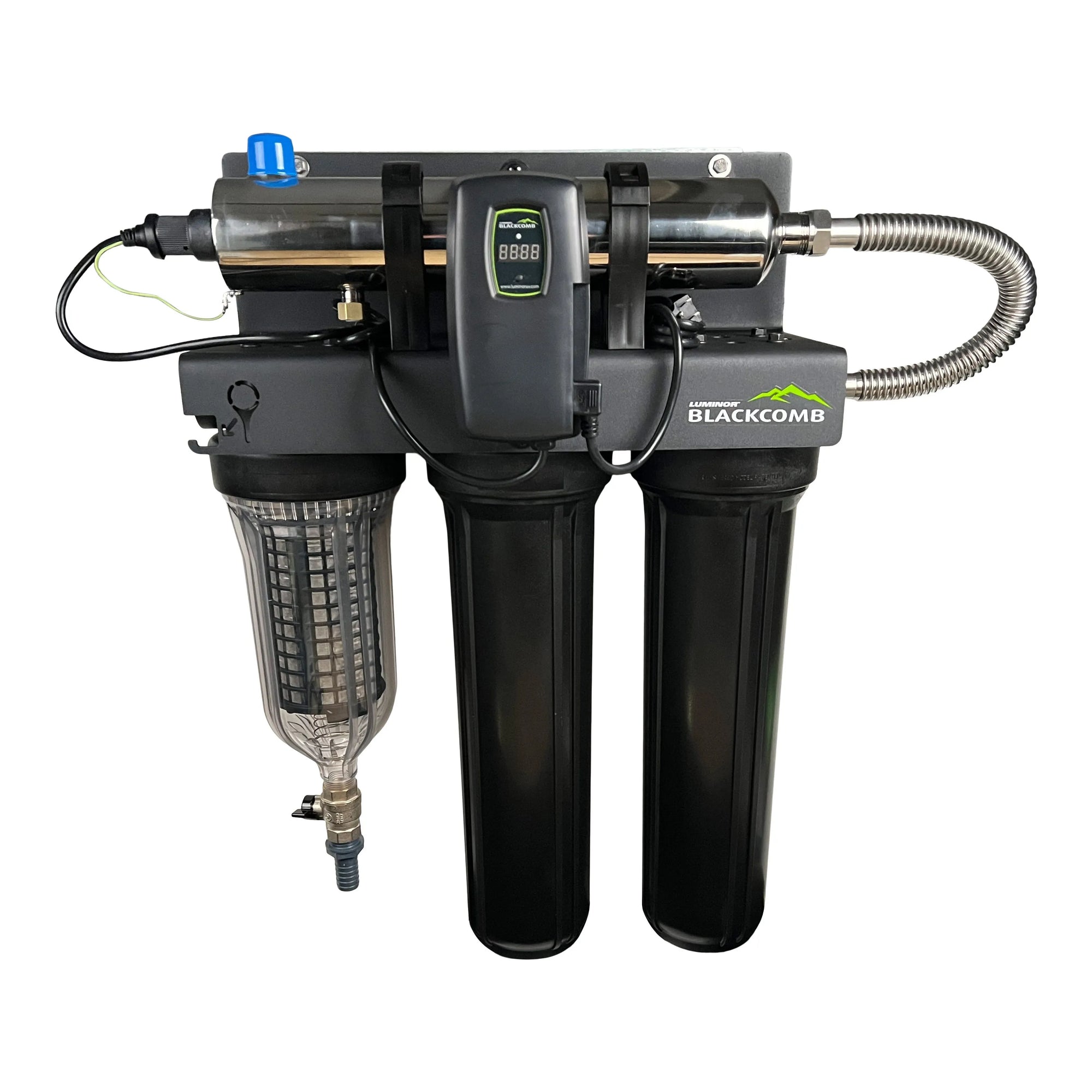

Luminor Blackcomb Trio 15 gpm Rack UV System LBH4-Z122
Luminor Blackcomb Trio 15 gpm Rack UV System LBH4-Z122
UV water treatment component designed to disinfect water by neutralizing bacteria and microorganisms without chemicals (20" x 4.5", 15 GPM).
Product Resources
Luminor Blackcomb Trio 15 gpm Rack UV System LBH4-Z122
The Luminor Blackcomb Trio Crossover UV Filter System is a high output, all in one solution designed to deliver both advanced filtration and reliable UV disinfection for whole home water treatment. Built for homes, cottages, and cabins, it combines pre filtration and UV technology on a single system to protect against bacteria while improving overall water quality.
✔️ 15 GPM high output performance for full home disinfection without sacrificing flow
✔️ Complete crossover system with mesh strainer, dual filter housings, and UV chamber
✔️ Effective protection against E. coli and coliform bacteria
✔️ Designed for both filtration and UV treatment in one streamlined setup
✔️ Includes 10 inch mesh strainer and two 20 inch by 4.5 inch filter housings
✔️ Self cleaning backwash filter helps reduce maintenance and extend system life
✔️ 316L stainless steel UV reactor built for durability and long term performance
✔️ Axial flow design improves UV exposure and system efficiency
✔️ Horizontal UV chamber reduces installation height requirements
✔️ Reversible design allows for flexible installation
✔️ 1 inch MNPT inlet and outlet connections for easy integration into most systems
✔️ Compact footprint fits a wide range of installation spaces
✔️ Lamp countdown timer with visible and audible alarms for maintenance reminders
✔️ Long 10,000 hour lamp life for fewer replacements
✔️ Easy DIY installation and servicing to reduce ongoing costs
✔️ Made in Canada with high quality construction
✔️ Power consumption 57 watts
✔️ Reactor size 20 inches long by 3.5 inches wide
✔️ Warranty includes 10 years on the stainless steel reactor, 3 years on electronics, and 1 year on lamp and sleeve
Please note this is a special order item with an estimated lead time of 2 to 4 weeks
Replacement lamp RL 420HO
Replacement sleeve RQ 420
Controller RCHO 4.12
20 inch Big Blue filters not included
Product number UVS LBH4 Z122
