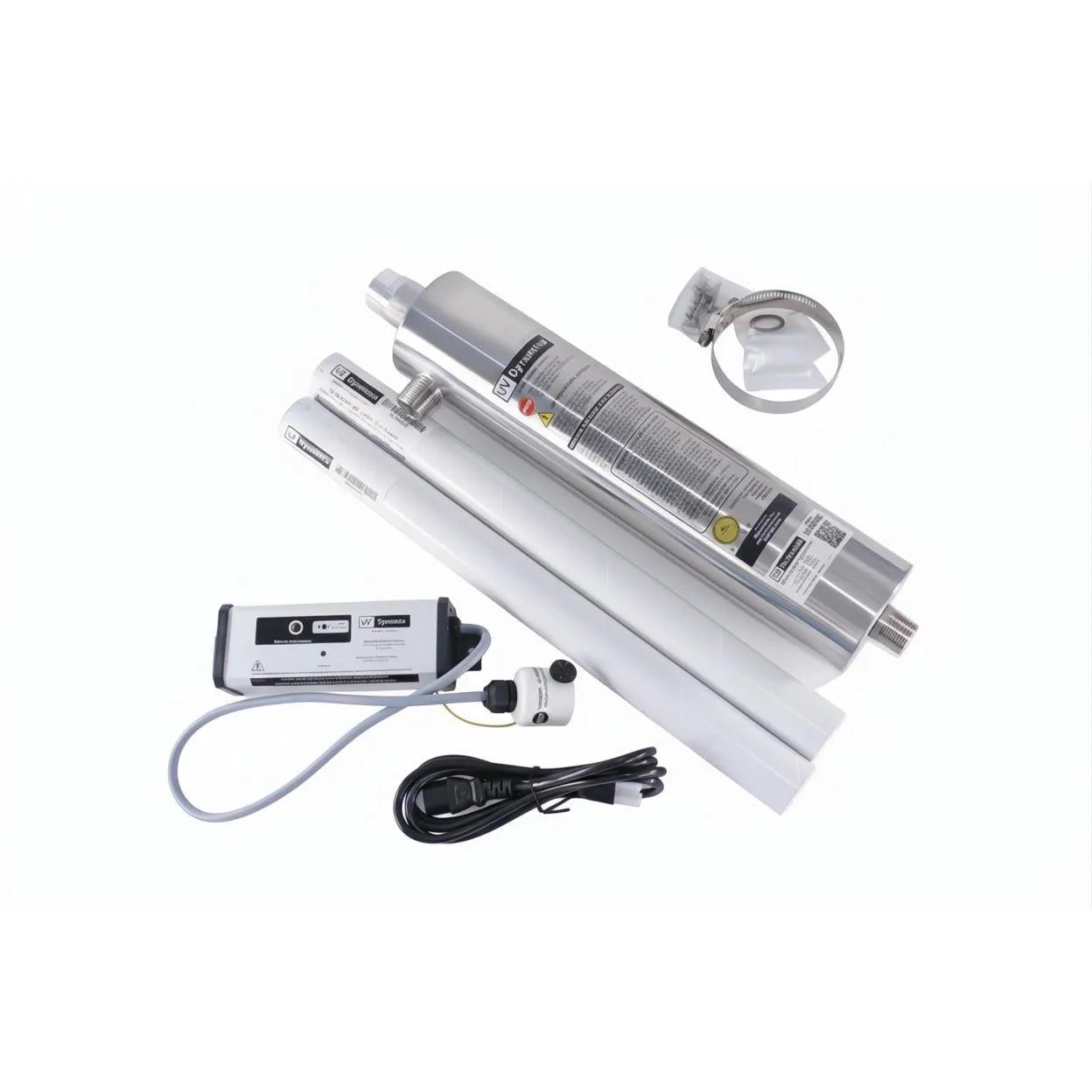

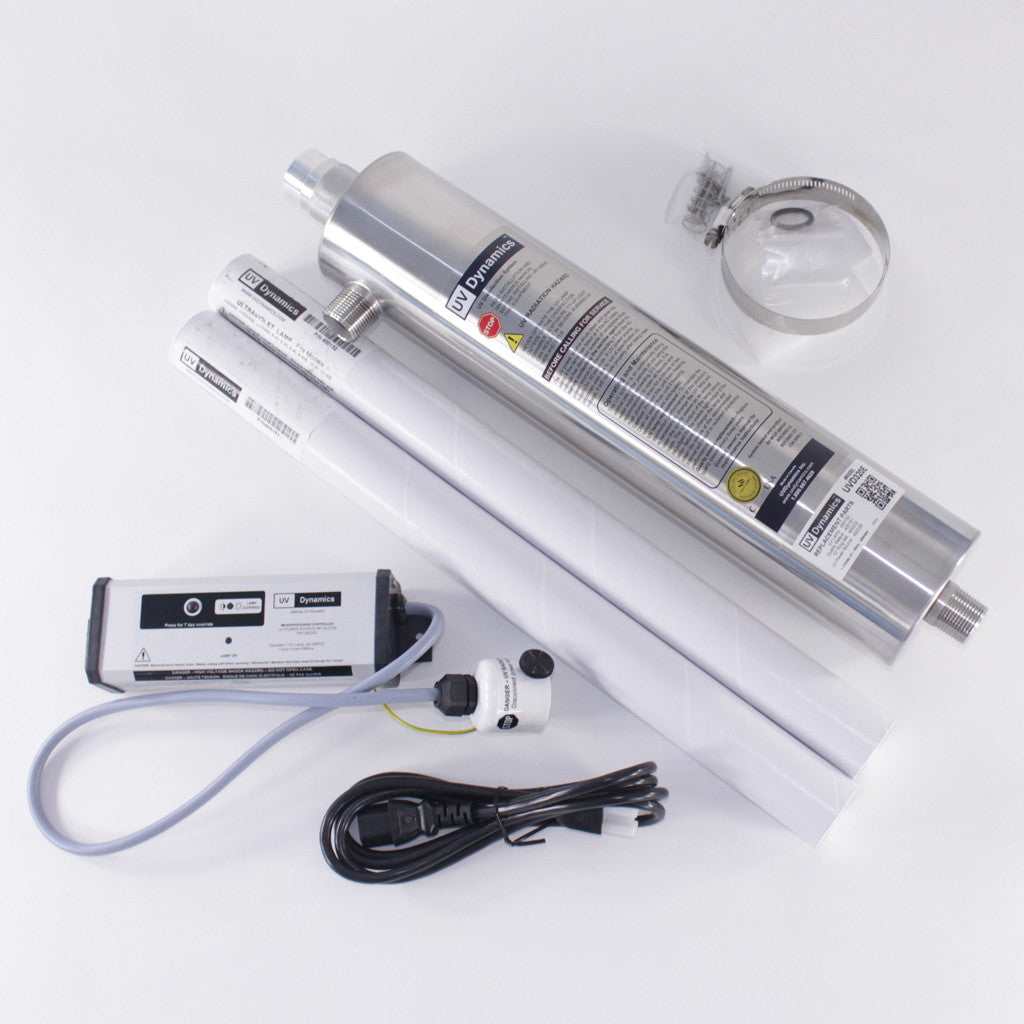

UV Dynamics 10GPM Ultraviolet System UVD320E
UV Dynamics 10GPM Ultraviolet System UVD320E
UV water treatment component designed to disinfect water by neutralizing bacteria and microorganisms without chemicals (10 GPM).
Product Resources
UV Dynamics 10GPM Ultraviolet System UVD320E
The UV Dynamics UVD320E Disinfection Water Filter System is a high-performance UV water disinfection system designed to provide reliable chemical-free ultraviolet treatment for residential water applications.
Engineered to deliver up to 10 gallons per minute at a UV dose of 30 mJ/cm², the UVD320E combines dependable UV performance, advanced monitoring features, and simplified maintenance in a compact Canadian-made design.
Key Features
• Genuine UV Dynamics ultraviolet disinfection system
• Delivers up to 10 GPM (37 LPM) at 30 mJ/cm² UV dose
• Passivated and polished 304 stainless steel reactor chamber
• Long-life coated UV lamp rated for 9,000 hours
• Microprocessor-controlled UV power source
• Audible and visible lamp failure alarms
• Annual lamp replacement timer
• Lamp life remaining feature
• Domed quartz sleeve for easier servicing
• Tool-free routine maintenance
• Easy-service lamp connector
• Made in Canada
Advanced UV Water Disinfection
The UVD320E uses ultraviolet technology to disinfect water as it flows through the polished stainless steel reactor chamber, helping reduce harmful microorganisms without adding chemicals, taste, or odor to the water supply.
Ideal applications include:
• Whole-home water treatment
• Residential well water systems
• Homes and cottages
• Point-of-entry water treatment systems
High-Performance UV Output
The system is engineered to provide:
• 10 GPM flow rate (37 LPM)
• UV dose of 30 mJ/cm²
This helps ensure dependable UV disinfection performance for residential water treatment applications.
Advanced Monitoring Features
The integrated microprocessor-controlled UV power source continuously monitors system operation and provides visual and audible alerts if lamp failure occurs.
Additional monitoring features include:
• Lamp failure alarm system
• Annual lamp replacement timer
• Lamp life remaining display
• Easy-service lamp connector
Easy Maintenance Design
The UVD320E is engineered for simplified servicing and routine maintenance.
Maintenance-friendly features include:
• Domed quartz sleeve for easier servicing
• No tools required for regular servicing
• Compact service-friendly chamber design
Specifications
• Product Number: UVS UVD320E
• System Type: UV Water Disinfection System
• Maximum Flow Rate: 10 GPM (37 LPM)
• UV Dose: 30 mJ/cm²
• Reactor Chamber Material: 304 Stainless Steel
• Reactor Dimensions: 3.5" × 18"
• Connection Size: 3/4" MNPT
• UV Lamp Life: 9,000 hours
• Control Type: Microprocessor-controlled power source
• Country of Manufacture: Canada
