Luminor Blackcomb Cross-Over 15 gpm Rack UV System LBH5-Z22
Luminor Blackcomb Cross-Over 15 gpm Rack UV System LBH5-Z22
UV water treatment component designed to disinfect water by neutralizing bacteria and microorganisms without chemicals (15 GPM).
Product Resources

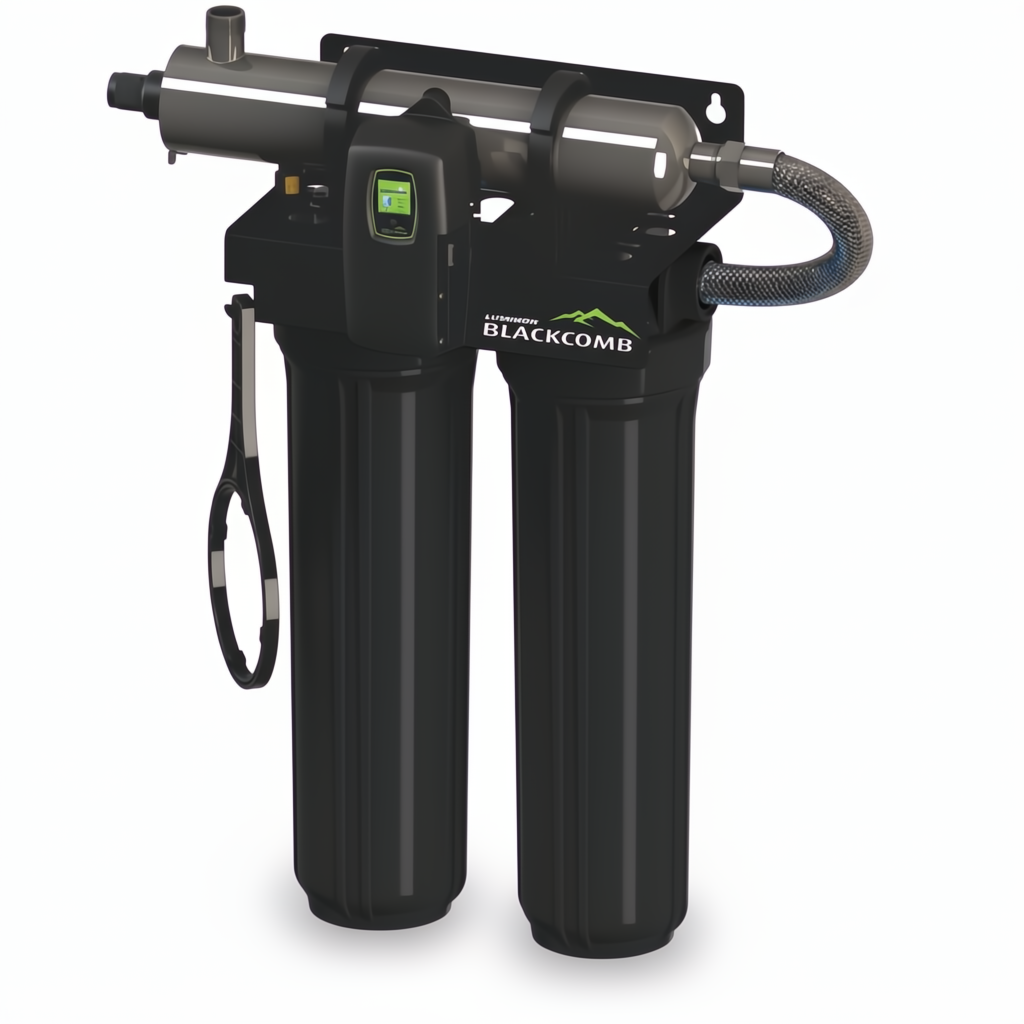

Luminor Blackcomb Cross-Over 15 gpm Rack UV System LBH5-Z22
The Luminor Blackcomb All in One Crossover UV Filter System is a high output solution designed to combine filtration and UV disinfection in one streamlined unit. Built for whole home use, it helps improve water quality while protecting against harmful bacteria like E. coli and coliform.
✔️ 15 GPM high output performance for full home disinfection without restricting flow
✔️ All in one system combines sediment filtration, carbon filtration, and UV treatment
✔️ Effective protection against bacteria and microbiological contaminants
✔️ Ideal for homes, cottages, and cabins
✔️ Includes two 20 inch filter housings for sediment and carbon filtration
✔️ 316L stainless steel UV reactor built for durability and long term performance
✔️ Axial flow design improves UV exposure and treatment efficiency
✔️ Continuous lamp life monitoring ensures consistent operation
✔️ Horizontal UV chamber reduces installation height requirements
✔️ Reversible design allows for flexible installation
✔️ 1 inch MNPT inlet and outlet connections for easy integration
✔️ Compact footprint fits a wide range of spaces
✔️ Lamp countdown timer with visible and audible alarms for maintenance reminders
✔️ Long 10,000 hour lamp life for fewer replacements
✔️ Easy DIY installation and servicing to reduce ongoing costs
✔️ Made in Canada with high quality construction
✔️ Power consumption 57 watts
✔️ Reactor size 20 inches long by 3.5 inches wide
✔️ Overall dimensions 9.5 inches deep by 23.5 inches wide by 33.5 inches high
✔️ Compatible with optional upgrades including UVT sensor, solenoid module, and remote alarm module
✔️ Warranty includes 10 years on the stainless steel reactor, 3 years on electronics, and 1 year on lamp and sleeve
Please note this is a special order item with an estimated lead time of 2 to 4 weeks
Replacement lamp RL 420HO
Replacement sleeve RQ 420

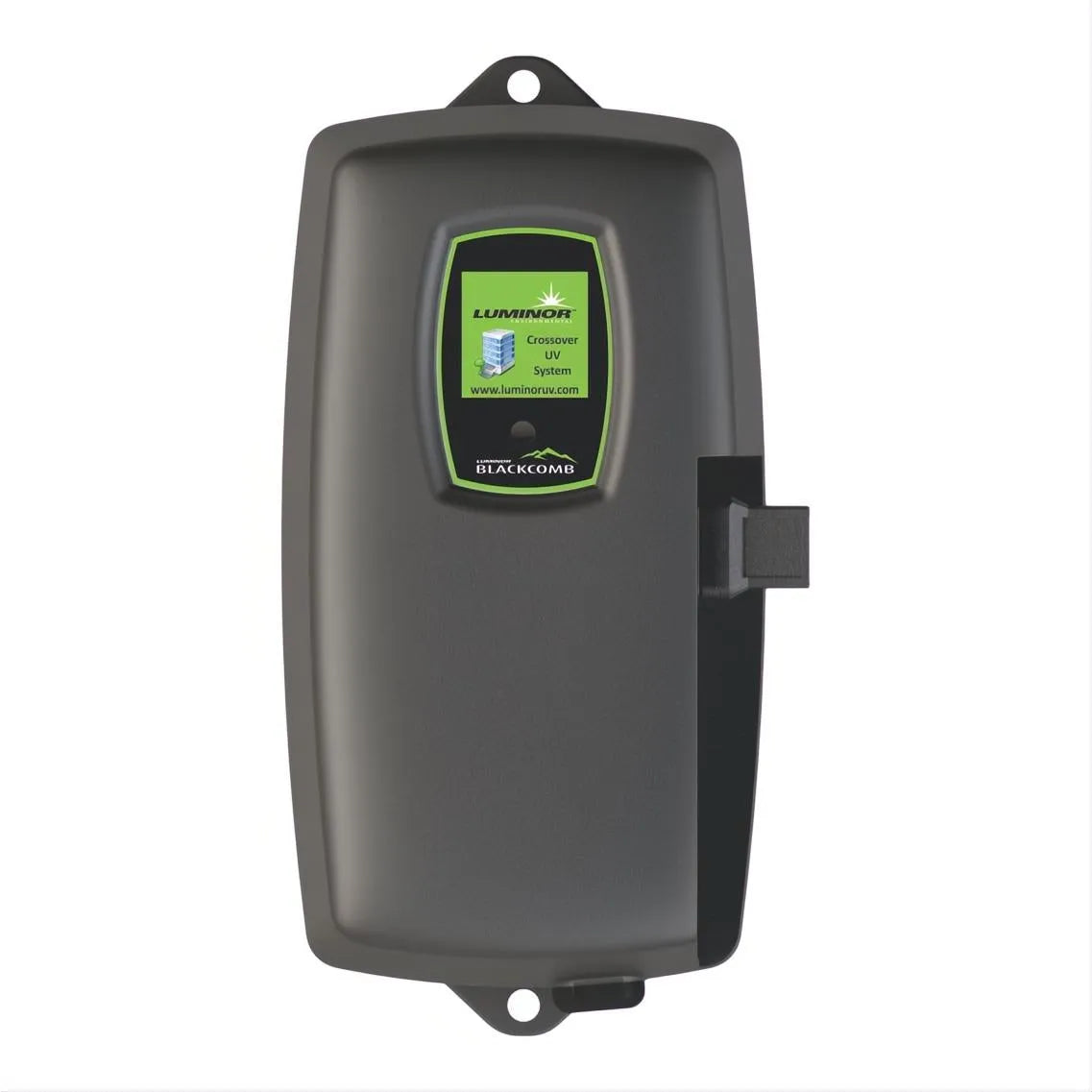

Controller RCHO 56.12
Product number UVS LBH5 Z22
