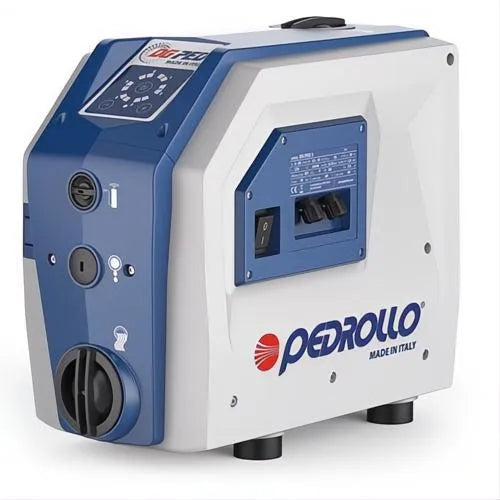

PEDROLLO DG PED 3 115V 1HP AUTO PRESSURIZATION SYSTEM

Key Features:

*LOW-NOISE

*CONSTANT PRESSURE

*EASY TO USE

DESCRIPTION

 DG PED is an automatic pressurisation system with inverter which integrates: a high efficiency self-priming pump; an expansion
vessel; pressure and flow rate sensors; a non-return valve.
 DG PED is a compact, autonomous, quiet and high performance pumping system.
 A sophisticated electronically controlled inverter, at the
heart of the system, in an intuitive way:
– maintains the pressure of the installation constant by regulating the speed of the pump in accordance with the required flow
rate;
– controls the hydraulic and electric operating parameters and
protects the pump from anomalies;
– can be equipped with an expansion card that makes it possible
to work in parallel with other inverters in the pumping groups
by managing input and output signals;
– it adapts to every type of pressurisation system, including existing
ones;
– it limits the starting and operating currents in order to provide a
greater saving of energy.

TECHNICAL DATA
• Supply voltage ~ 230 V ± 10%
• Frequency 50 Hz
• Insulation: class F
• Max absorbed current: 7.5 A DG PED 3
• P1 Maximum absorbed power: 1.0 kW DG PED 3
• Protection IP X4
• Factory set point 3 bar

APPLICATION LIMITS
• Manometric suction lift up to 8 m
• Liquid temperature between 0 °C and +40 °C
• Ambient temperature between 0 °C and +40 °C
• Max. working pressure 10 bar
• Continuous service S1
• Operates in a vertical position
