UV Dynamics 16 GPM Minirack with two 20" BB Housings
UV Dynamics 16 GPM Minirack with two 20" BB Housings
UV water treatment component designed to disinfect water by neutralizing bacteria and microorganisms without chemicals (16 GPM).
Product Resources

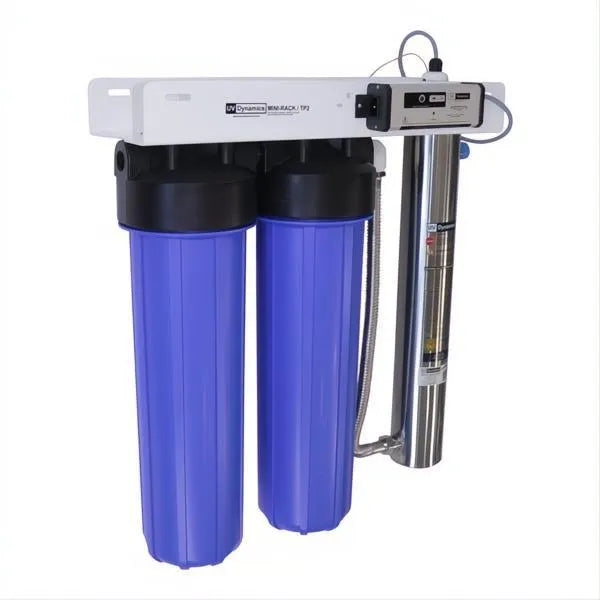

UV Dynamics 16 GPM Minirack with two 20" BB Housings
The UV Dynamics MR485-TP2/220 16 GPM Minirack Ultraviolet Disinfection System is a compact, integrated UV water treatment system designed to provide up to 16 gallons per minute of disinfected water for residential and light commercial applications.
Combining a genuine UV Dynamics ultraviolet disinfection chamber with two integrated 20" Big Blue filter housings, this Mini Rack system offers a clean, space-saving installation that simplifies plumbing, servicing, and maintenance.
This model is also compatible with optional solenoid valve upgrades for enhanced system protection and monitoring.
Key Features
• Genuine UV Dynamics ultraviolet disinfection system
• Treats flow rates up to 16 GPM
• Integrated Mini Rack filtration and UV platform
• Includes two 20" Big Blue filter housings
• Solenoid-compatible system design
• Heavy-duty commercial-grade steel frame
• Powder-coated corrosion-resistant finish
• Bottom drain plug for winterization
• Compact wall-mountable design
Integrated Whole Home Water Treatment
The MR485-TP2/220 combines:
• Two 20" Big Blue filter housings
• Ultraviolet disinfection chamber
• Integrated steel Mini Rack mounting platform
This all-in-one system creates a cleaner installation and makes maintenance easier compared to separate standalone filtration and UV components.
Ideal for Homes & Seasonal Properties
The integrated drain plug and compact footprint make this system well suited for:
• Homes
• Cottages
• Seasonal properties
• Cabins
• Light commercial applications
Heavy-Duty Commercial Construction
The Mini Rack frame is built from rugged 10-gauge HR commercial-grade steel and finished with a durable powder-coated coating designed to resist corrosion and maintain a clean appearance over time.
The wall-mountable design also helps save valuable floor space while improving accessibility for servicing.
Easy Installation & Maintenance
The integrated system layout is designed for straightforward installation and simplified maintenance.
Helpful resources include:
• Installation videos
• Maintenance videos
Replacement Parts
• Replacement UV Lamp: 400269
• Replacement UV Sleeve: 400273
Filter Information
Please note:
This system does not include the sediment and carbon filters required for operation.
A compatible combo filter pack must be purchased separately to complete installation.
Specifications
• Product Number: UVS MR485-TP2/220
• System Type: Integrated UV Mini Rack Water Treatment System
• Maximum Flow Rate: 16 GPM
• Connection Size: 3/4" MNPT
• Filter Housings: Two 20" Big Blue housings
• Dimensions: 28" L × 23" W × 8" H
• Mounting Style: Wall mountable
• Drain Feature: Bottom-mounted 1/4" drain plug
Additional Information
• Solenoid valve compatible
• Eligible for mix-and-match UV system quantity break pricing
• Installation and maintenance videos available above product images
