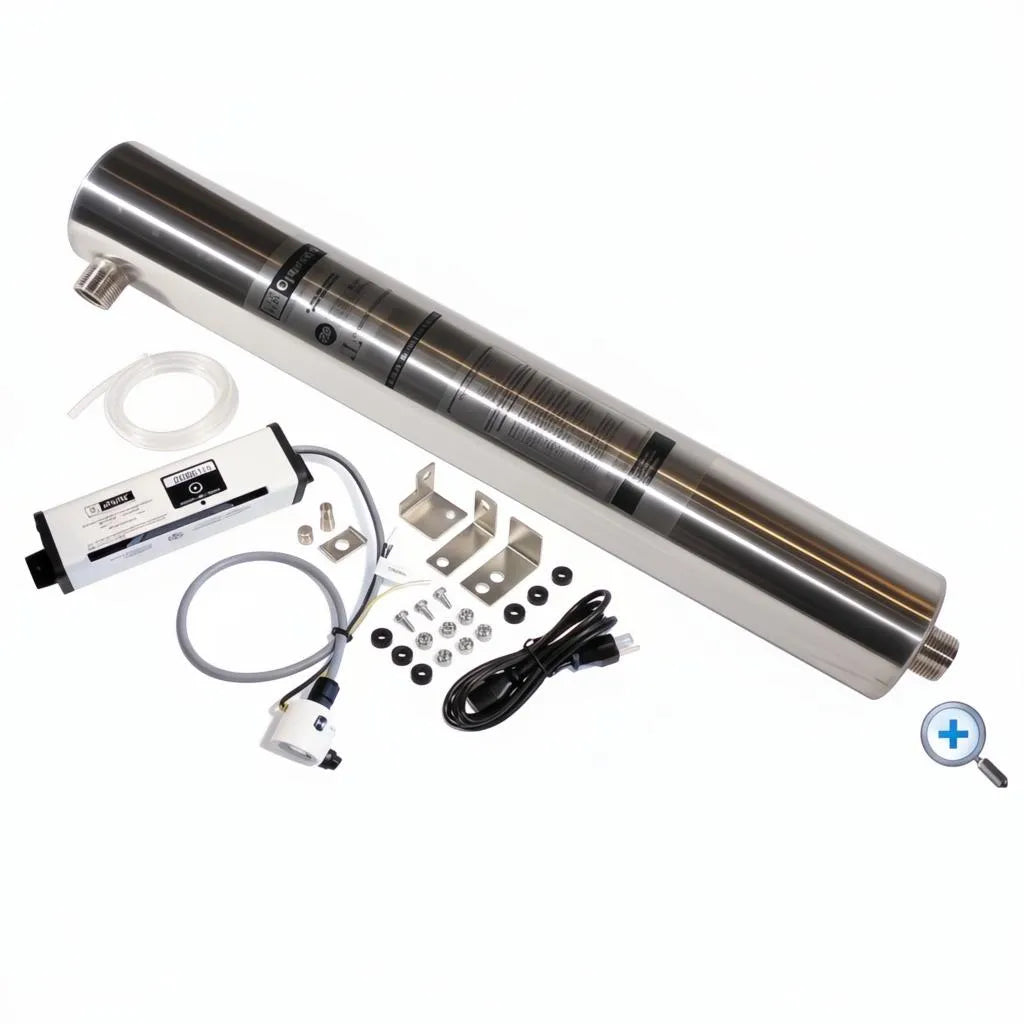

UV Dynamics 16GPM Ultraviolet UVD485E
UV Dynamics 16GPM Ultraviolet UVD485E
UV water treatment component designed to disinfect water by neutralizing bacteria and microorganisms without chemicals (16 GPM).
Product Resources
UV Dynamics 16GPM Ultraviolet UVD485E
The UV Dynamics UVD485E Ultraviolet Disinfection Water Filter System is a high-performance UV water disinfection system designed to provide reliable chemical-free ultraviolet treatment for residential and light commercial water applications.
With high-flow 1" connections and a treatment capacity of up to 16 gallons per minute, the UVD485E delivers strong UV performance, advanced monitoring features, and simplified maintenance in a compact stainless steel design.
Key Features
• Genuine UV Dynamics ultraviolet disinfection system
• Delivers up to 16 GPM at 30 mJ/cm² UV dose
• High-flow 1" MNPT connections
• Long-life coated UV lamp rated for 9,000 hours
• Microprocessor-controlled UV power source
• Audible and visible lamp failure alarms
• Annual lamp replacement reminder timer
• Lamp life remaining display feature
• Domed quartz sleeve for easier servicing
• Easy-service lamp connector
Advanced UV Water Disinfection
The UVD485E uses ultraviolet technology to disinfect water as it passes through the stainless steel chamber, helping reduce harmful microorganisms without adding chemicals, taste, or odor to the water supply.
Ideal applications include:
• Whole-home water treatment
• Residential well water systems
• Larger homes
• Light commercial applications
• Point-of-entry water treatment systems
High-Performance UV Output
The system is engineered to deliver:
• 16 GPM (60 LPM)
• UV dose of 30 mJ/cm²
This combination of flow and UV intensity provides dependable disinfection performance for residential and light commercial use.
Smart Monitoring & Alarm Features
The integrated microprocessor-controlled UV power source continuously monitors system operation and provides visual and audible alerts if lamp failure occurs.
Additional monitoring features include:
• Lamp failure alarm system
• Annual lamp replacement reminder timer
• Lamp life remaining indicator
Easy Maintenance Design
The UVD485E is designed for simplified servicing and routine maintenance.
Service-friendly features include:
• Domed quartz sleeve for easier removal and servicing
• Easy-service lamp connector
• Compact stainless steel reactor design
Replacement Parts
• Replacement UV lamp available separately
• Replacement quartz sleeve available separately
Specifications
• Product Code: UVS UVD485E
• System Type: UV Water Disinfection System
• Maximum Flow Rate: 16 GPM (60 LPM)
• UV Dose: 30 mJ/cm²
• Connection Size: 1" MNPT
• Reactor Dimensions: 3.5" × 24.5"
• UV Lamp Life: 9,000 hours
• Control Type: Microprocessor-controlled power source
Important Information
• Not compatible with solenoid valves
• Typical lead time: Approximately 3 weeks
• Installation and maintenance videos available above product images
