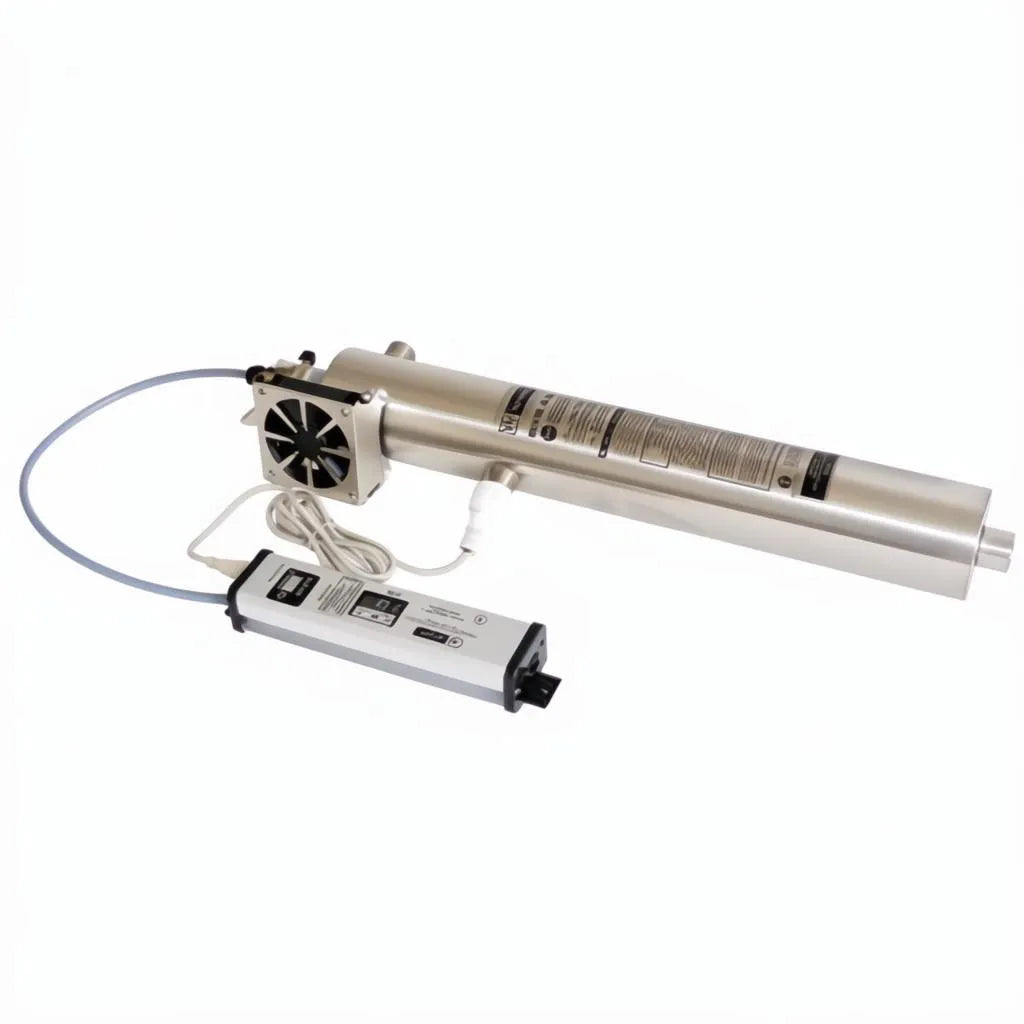

UV Dynamics 20GPM Class "A" UVD20.40C
UV Dynamics 20GPM Class "A" UVD20.40C
UV water treatment component designed to disinfect water by neutralizing bacteria and microorganisms without chemicals (20 GPM).
Product Resources
UV Dynamics 20GPM Class "A" UVD20.40C
The UV Dynamics UVD20.40C Ultraviolet Disinfection Water Filter System is a high-performance NSF/ANSI 55 Class A UV water disinfection system designed to provide reliable chemical-free ultraviolet treatment for residential and light commercial water applications.
Engineered to deliver up to 20 gallons per minute at a UV dose of 40 mJ/cm², the UVD20.40C combines advanced UV performance, intelligent monitoring features, and durable long-life components for dependable whole-home water disinfection.
Key Features
• Genuine UV Dynamics ultraviolet disinfection system
• NSF/ANSI 55 Class A certified
• Delivers up to 20 GPM at 40 mJ/cm² UV dose
• Long-life coated UV lamp rated for 9,000 hours
• Microprocessor-controlled UV power source
• Audible and visible lamp failure alarms
• Two-digit display interface
• Annual lamp replacement reminder timer
• Dynamic flow regulator
• Cold Spot Fan™ technology
• Easy-service lamp connector
• Optional solenoid valve compatibility
NSF/ANSI 55 Class A UV Protection
The UVD20.40C is certified to NSF/ANSI Standard 55 Class A for ultraviolet microbiological water treatment performance, helping provide dependable protection against harmful microorganisms in residential water supplies.
Advanced UV Water Disinfection
The system uses ultraviolet technology to disinfect water as it flows through the stainless steel chamber, helping reduce harmful microorganisms without adding chemicals, taste, or odor to the water supply.
Ideal applications include:
• Whole-home water treatment
• Residential well water systems
• Larger homes
• Light commercial applications
• Point-of-entry water treatment systems
High-Performance UV Output
The system is engineered to provide:
• 20 GPM flow rate
• UV dose of 40 mJ/cm²
This higher UV intensity level helps provide enhanced disinfection performance for residential and commercial water treatment applications.
Advanced Monitoring & Performance Features
The integrated microprocessor-controlled UV power source continuously monitors system operation and provides both audible and visual alerts if lamp failure occurs.
Additional features include:
• Two-digit display interface
• Lamp failure alarm system
• Annual lamp replacement reminder timer
• Dynamic flow regulator
• Cold Spot Fan™ cooling technology
• Easy-service lamp connector
Long-Life UV Lamp
The included coated UV lamp is rated for approximately 9,000 hours of operation, helping reduce maintenance frequency while maintaining reliable UV performance.
Replacement Parts
• Replacement UV Lamp: 400271
• Replacement UV Sleeve: 400275
Specifications
• Product Number: UVS UVD20.40C
• System Type: NSF Class A UV Water Disinfection System
• Maximum Flow Rate: 20 GPM
• UV Dose: 40 mJ/cm²
• Connection Size: 1" MNPT inlet and outlet
• Dimensions: 3.5" × 50.5"
• UV Lamp Life: 9,000 hours
• Control Type: Microprocessor-controlled power source
Optional Accessories
• Solenoid valve
Additional Information
• Typical lead time: 2–6 weeks
• Installation and maintenance videos available above product images
