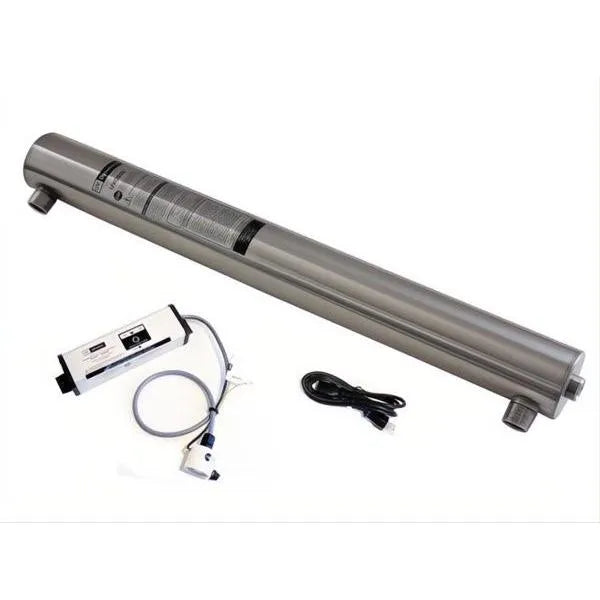

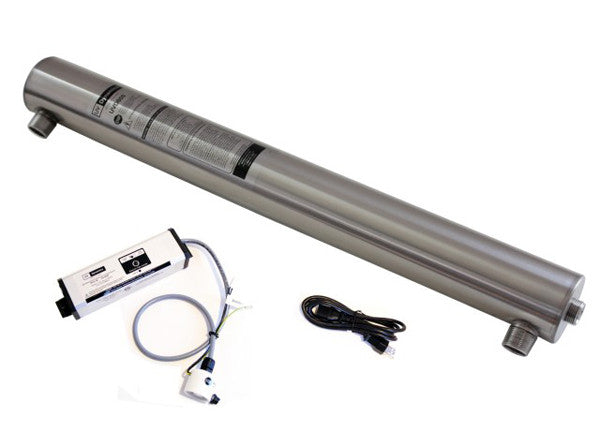

UV Dynamics 40 GPM Ultraviolet System # UVD1200
UV Dynamics 40 GPM Ultraviolet System # UVD1200
UV water treatment component designed to disinfect water by neutralizing bacteria and microorganisms without chemicals (40 GPM).
Product Resources
UV Dynamics 40 GPM Ultraviolet System # UVD1200
The UV Dynamics UVD1200 Ultraviolet Disinfection Water Filter System is a high-capacity UV water disinfection system designed to provide reliable chemical-free ultraviolet treatment for residential, commercial, and light industrial water applications.
Engineered to deliver up to 40 gallons per minute at a UV dose of 30 mJ/cm² or 30 gallons per minute at 40 mJ/cm², the UVD1200 combines powerful UV performance, advanced monitoring features, and durable long-life components for dependable high-flow water disinfection.
Key Features
• Genuine UV Dynamics ultraviolet disinfection system
• Delivers up to 40 GPM at 30 mJ/cm² UV dose
• Delivers up to 30 GPM at 40 mJ/cm² UV dose
• Long-life coated UV lamp rated for 9,000 hours
• Microprocessor-controlled UV power source
• Audible and visible lamp failure alarms
• Annual lamp replacement reminder timer
• Easy-service lamp connector
• Optional solenoid valve compatibility
• Optional UV monitoring system available
• Made in Canada
Advanced UV Water Disinfection
The UVD1200 uses ultraviolet technology to disinfect water as it passes through the stainless steel chamber, helping reduce harmful microorganisms without adding chemicals, taste, or odor to the water supply.
Ideal applications include:
• Large homes and estates
• Commercial buildings
• Agricultural systems
• Multi-family applications
• Light industrial water treatment systems
High-Performance UV Output
The system is engineered to provide:
• 40 GPM at 30 mJ/cm² UV dose
• 30 GPM at 40 mJ/cm² UV dose
This allows flexibility for applications requiring different levels of UV disinfection intensity and higher flow performance.
Smart Monitoring & Alarm Features
The integrated microprocessor-controlled UV power source continuously monitors system operation and provides both audible and visual alerts if lamp failure occurs.
Additional monitoring features include:
• Lamp failure alarm system
• Annual lamp replacement reminder timer
• Easy-service lamp connector
Long-Life UV Lamp
The included coated UV lamp is rated for approximately 9,000 hours of operation, helping reduce maintenance frequency while maintaining reliable UV performance.
Replacement Parts
• Replacement UV Lamp: 400271
• Replacement UV Sleeve: 400275
Specifications
• Product Number: UVS UVD1200
• System Type: UV Water Disinfection System
• Maximum Flow Rate: 40 GPM @ 30 mJ/cm²
• UV Dose: 40 mJ/cm² at 30 GPM
• Connection Size: 1" MNPT
• Dimensions: 3.5" × 50.5"
• UV Lamp Life: 9,000 hours
• Ballast Type: LLG Ballast
• Control Type: Microprocessor-controlled power source
• Country of Manufacture: Canada
Optional Accessories
• Solenoid valve
• UV monitoring system
Additional Information
• Typical lead time: Approximately 3 weeks
• Installation and maintenance videos available above product images
