UV Dynamics 8 GPM Ultraviolet Certified System UVD8.40C
UV Dynamics 8 GPM Ultraviolet Certified System UVD8.40C
UV water treatment component designed to disinfect water by neutralizing bacteria and microorganisms without chemicals (8 GPM).
Product Resources

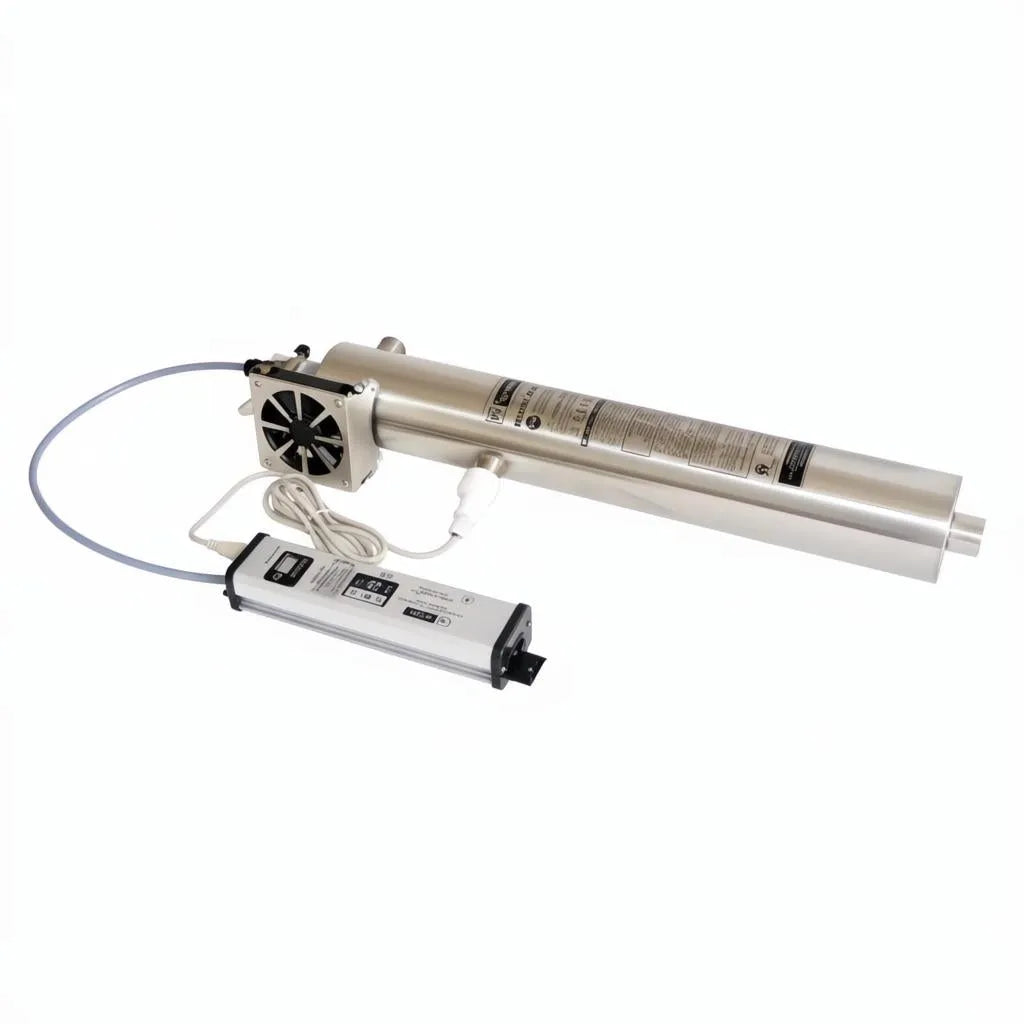

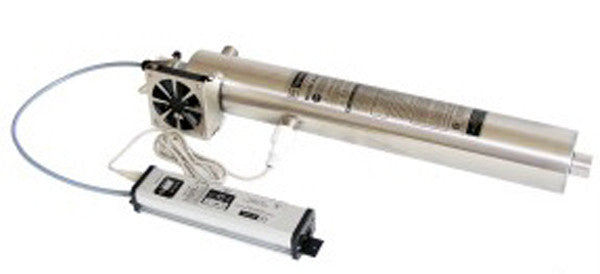

UV Dynamics 8 GPM Ultraviolet Certified System UVD8.40C
The UV Dynamics UVD8.40C Ultraviolet Disinfection System is a high-performance NSF/ANSI 55 Class A UV water disinfection system designed to provide reliable chemical-free ultraviolet treatment for residential water applications.
Engineered to deliver up to 8 gallons per minute at a UV dose of 40 mJ/cm², this Canadian-made system combines advanced monitoring technology, intelligent flow regulation, and long-life components for dependable whole-home water disinfection.
Key Features
• Genuine UV Dynamics ultraviolet disinfection system
• NSF/ANSI 55 Class A certified
• Delivers up to 8 GPM at 40 mJ/cm² UV dose
• Long-life coated UV lamp rated for 9,000 hours
• Microprocessor-controlled UV power source
• Audible and visible lamp failure alarms
• Two-digit display interface
• Annual lamp replacement reminder timer
• Lamp life remaining feature
• Dynamic flow regulator
• Cold Spot Fan™ technology
• Easy-service lamp connector
• Optional solenoid valve compatibility
• Made in Canada
NSF/ANSI 55 Class A UV Protection
The UVD8.40C is certified to NSF/ANSI Standard 55 Class A for ultraviolet microbiological water treatment performance, helping provide dependable protection against harmful microorganisms in residential water supplies.
Advanced UV Water Disinfection
The system uses ultraviolet technology to disinfect water as it flows through the stainless steel chamber, helping reduce harmful microorganisms without adding chemicals, taste, or odor to the water supply.
Ideal applications include:
• Homes and cottages
• Residential well water systems
• Point-of-entry water treatment applications
• Smaller whole-home UV installations
High-Performance UV Output
The system is engineered to provide:
• 8 GPM flow rate
• UV dose of 40 mJ/cm²
This higher UV intensity level helps provide enhanced disinfection performance for residential water treatment applications.
Advanced Monitoring & Performance Features
The integrated microprocessor-controlled UV power source continuously monitors system operation and provides visual and audible alerts if lamp failure occurs.
Advanced system features include:
• Two-digit display interface
• Lamp failure alarm system
• Annual lamp replacement reminder timer
• Lamp life remaining feature
• Dynamic flow regulator
• Cold Spot Fan™ cooling technology
• Easy-service lamp connector
Long-Life UV Lamp
The included coated UV lamp is rated for approximately 9,000 hours of operation, helping reduce maintenance frequency while maintaining reliable UV performance.
Replacement Parts
• Replacement UV Lamp: 400269
• Replacement UV Sleeve: 400273
Specifications
• Product Number: UVS UVD008.40C0120LL/S
• System Type: NSF Class A UV Water Disinfection System
• Maximum Flow Rate: 8 GPM
• UV Dose: 40 mJ/cm²
• Connection Size: 3/4" MNPT
• Dimensions: 4" × 24.5"
• UV Lamp Life: 9,000 hours
• Control Type: Microprocessor-controlled power source
• Country of Manufacture: Canada
Optional Accessories
• Solenoid valve
Additional Information
• Typical lead time: Approximately 3 weeks
• Installation and maintenance videos available above product images
