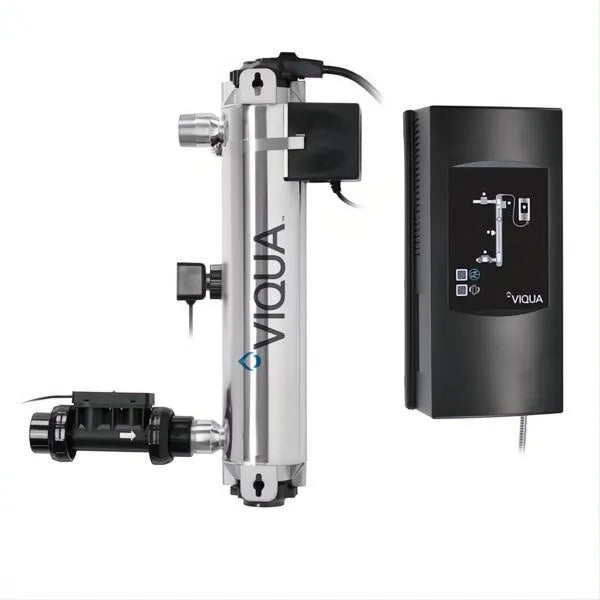

Viqua UV 10GPM Pro 10 with LightWise Tech. Part# 650647

Viqua UV System is the perfect size UV for a larger home, cottage, and commercial applications.  This unit can only be mounted vertically.  Fully monitored system that provides half-power to lamps when no water is flowing to minimize power consumption.   The inlet and outlet connections are 1" threaded.  The inlet and outlet ports are on the same side of the stainless steel chamber to facilitate easier end of line plumbing.  Uses Viqua replacement lamp 602854 and quartz sleeve 602974

✔️ Dimensions 22" X 4" or 54 cm X 10 cm
✔️ Power Consumption 120W
✔️ 10 GPM
✔️ Connection Size 1 1/4" MNPT x 1" FNPT Combo
✔️High-peformance UV lamp, Reduces maintenance requirements by lasting up to 2 years replacement
✔️ NSF 55 Class A Certification

Part Number UVS 650647
