Waterite Vectamaxx RSL 2400 gpd Reverse Osmosis System

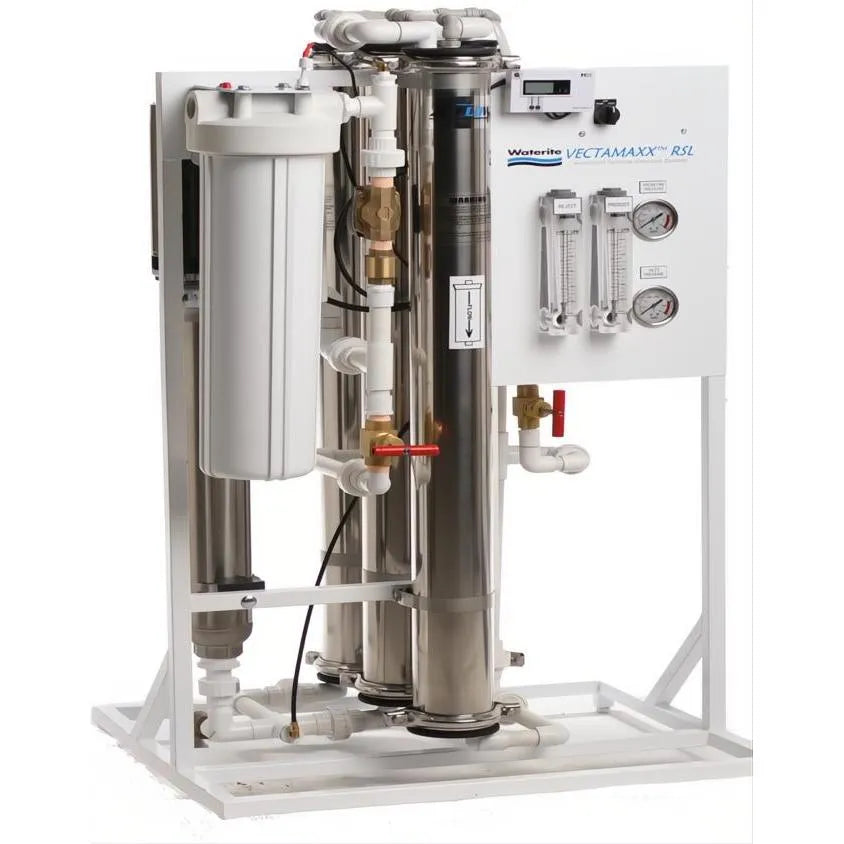

Please note: product is not exatly as shown in image. This model has only one membrane.
GENERAL SPECIFICATIONS TYPE: Extra Low pressure RO, spiral wound membrane(s) in series, recirculation loop
VOLTAGE: 230VAC/60hz (other voltages available on request)
SERVICE AMPS: 230VAC RSL2400 6.4
FEED WATER PRESSURE: 40 psi minimum, 65 psi maximum
FEED WATER TEMP: 35º C maximum
MATERIAL SPECIFICATIONS: FRAME COLOUR: White powder coat
FRAME MATERIAL: Mild steel square tubular, c/w leveling feet
FRAME DIMENSIONS: Height 50" (127cm) Width 31" (79cm) Depth 24.0" (62cm) OPERATING PRESSURE: 130 psi (9.1 bar) for RSL 2400
MEMBRANE: BLACK MAX®, spiral wound TFC, BME- 4040SXL, 2400 USGPD permeate @ 500 mg/l NaCl, 100 psi, 25ºC feed
UNIT DRY WEIGHT: RSL2400: 127 lbs. (57.6 kg)
INLET SOLENOID: 220VAC/60hz, normally closed, ¾” FNPT, 0 differential, brass LOW PRESSURE SWITCH: 220VAC/60Hz cut-out @ 15 psi DRIVE PUMP MOTOR: 230VAC/60hz, type 56J frame, 3450 RPM, threaded shaft, ball bearing
DRIVE PUMP: Multi-stage 416SS, stainless discharge, housing and bracket, Noryl impellers and stages, SS bearings, wear rings, couplings and pump shaft. RSL2400: 10 USGPM @ 110 psi (Based on 0 psi inlet pressure)
CONCENTRATE VALVE: Brass needle valve, internally bypassed, metal seated, o-ring packing
RECIRCULATION VALVE: Brass needle valve, metal seated, o-ring packing
SYSTEM FITTINGS: Schedule 40 PVC LOW PRESSURE FITTINGS: Jaco standard pressure compression or DMT push-on LOW PRESSURE TUBING: Higher pressure 1/2” LDPE, clear PRE-FILTRATION HOUSING: 1 X Polypropylene, 20”, 125 psi rated, o-ring seated with threaded cap, pressure release, 1” inlet/outlet, full flow, 20 USGPM maximum
FILTER CARTRIDGE: Polypropylene, 5-micron SPEC RO-SYS-002R5 SMEMBRANE HOUSING: 304 SS body, polyethylene caps, band clamp closure, ¾” FNPT concentrate ports, ½” permeate port, 300 psi rating (optional)
PRESSURE GAUGES: Glycerin filled, stainless body, 2 1/2’’. 0-100 psi pre-filter pressure pre/post, 0-200 psi system pressure
FLOW METERS: Acrylic panel mounted, 0.5-5.0 USGPM or 1.0 - 10.0 USGPM, dependent on model
HIGH PRESSURE RELIEF VALVE: Watts model 3L, bronze body, set at 150 psi for 2400-7200
PERFORMANCE SPECIFICATIONS PERMEATE PRODUCTION RATE: RSL2400 1.6 USGPM (6.0 LPM)
Calculated production rate @ feed water of 500 mg/l NaCl, 25ºC, average system pressure @ 130psi, 60 % recovery, inlet pressure of 50 psi.
WASTE PRODUCTION RATE: Recovery Rate @ 60% Feed Water 1000 TDS RSL2400 2.4 USGPM (9.0 LPM)
MEMBRANE CROSSFLOW: RSL2400: (1) 15.1 USGPM (57 LPM) RECOMMENDED FEED WATER PRETREATMENT SPECIFICATIONS: TDS: < 2000 TDS HARDNESS: < 6 gpg (103 mg/l) TOTAL IRON: < .05 ppm TANNIN: < .5 ppm CHLORINE: < .1 ppm pH: 5.5 – 9.5
ORGANIC/MICROBIOLOGICAL ACTIVITY: 0 MANGANESE: < 5.0 E.
FEED WATER REQUIREMENTS: RSL2400: 4.4 USGPM minimum
Please note: These systems are built to order so allow 6-8 weeks for delivery. Also since these are built to order, all sales are final.
