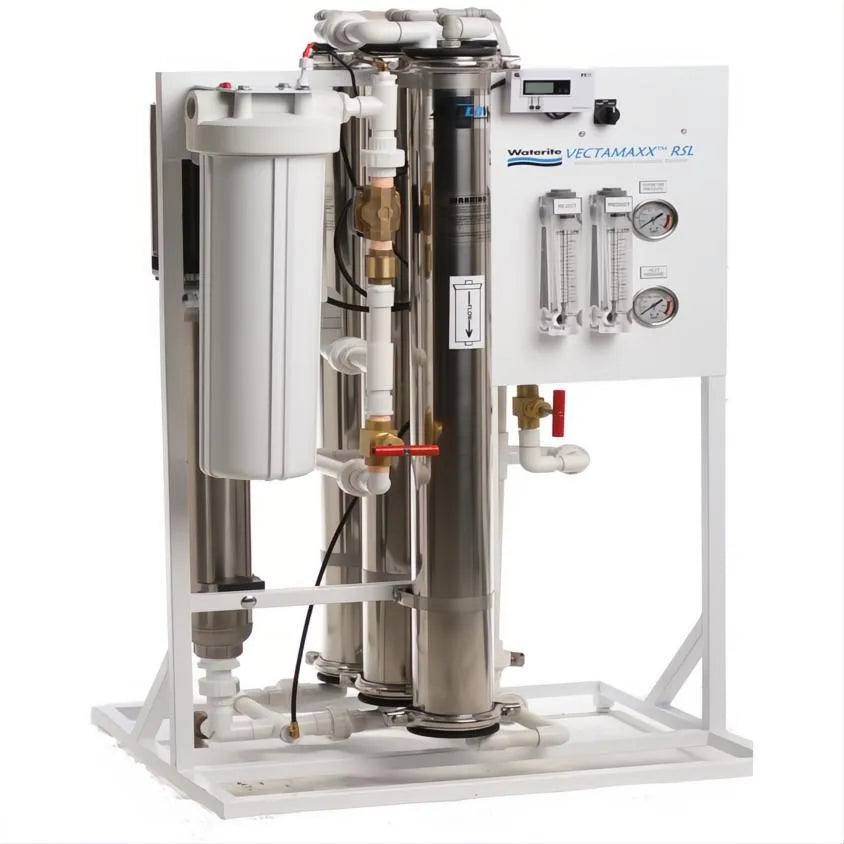

Waterite Vectamaxx RSLHP7200 gpd High Pressure Reverse Osmosis System
GENERAL SPECIFICATIONS TYPE: Extra Low pressure RO, spiral wound membrane(s) in series, recirculation loop
VOLTAGE: 230VAC/60hz (other voltages available on request)
SERVICE AMPS: 230VAC RSLHP7200 10.3 VAC
FEED WATER PRESSURE: 30 psi minimum, 70 psi maximum
FEED WATER TEMP: 40º C maximum
MATERIAL SPECIFICATIONS: FRAME COLOUR: White powder coat
FRAME MATERIAL: Mild steel square tubular, c/w leveling feet
FRAME DIMENSIONS: Height 50" (127cm) Width 31" (79cm) Depth 24.0" (62cm) OPERATING PRESSURE: 230 psi (9.1 bar) for RSLHP7200
MEMBRANE: BLACK MAX®, spiral wound TFC, BME- 4040S, 2400 USGPD permeate @ 2000 mg/l NaCl, 100 psi, 25ºC feed
UNIT DRY WEIGHT: RSLHP7200: 163 lbs. (74 kg)
INLET SOLENOID: 220VAC/60hz, normally closed, ¾” FNPT, 0 differential, brass LOW PRESSURE SWITCH: 220VAC/60Hz cut-out @ 15 psi DRIVE PUMP MOTOR: 230VAC/60hz, type 56J frame, 3450 RPM, threaded shaft, ball bearing
DRIVE PUMP: Multi-stage 416SS, stainless discharge, housing and bracket, Noryl impellers and stages, SS bearings, wear rings, couplings and pump shaft. RSLHP7200: 10 USGPM @ 200 psi (Based on 0 psi inlet pressure)
CONCENTRATE VALVE: Brass needle valve, internally bypassed, metal seated, o-ring packing
RECIRCULATION VALVE: Brass needle valve, metal seated, o-ring packing
SYSTEM FITTINGS: Schedule 40 PVC LOW PRESSURE FITTINGS: Jaco standard pressure compression or DMT push-on LOW PRESSURE TUBING: Higher pressure 1/2” LDPE, clear PRE-FILTRATION HOUSING: 1 X Polypropylene, 20”, 125 psi rated, o-ring seated with threaded cap, pressure release, 1” inlet/outlet, full flow, 20 USGPM maximum
FILTER CARTRIDGE: Polypropylene, 5-micron SPEC RO-SYS-002R5 SMEMBRANE HOUSING: 304 SS body, polyethylene caps, band clamp closure, ¾” FNPT concentrate ports, ½” permeate port, 300 psi rating (optional)
PRESSURE GAUGES: Glycerin filled, stainless body, 2 1/2’’. 0-100 psi pre-filter pressure pre/post, 0-200 psi system pressure
FLOW METERS: Acrylic panel mounted, 0.5-5.0 USGPM or 1.0 - 10.0 USGPM, dependent on model
HIGH PRESSURE RELIEF VALVE: Watts model 3L, bronze body, set at 150 psi for 2400-7200
PERFORMANCE SPECIFICATIONS PERMEATE PRODUCTION RATE: RSLHP7200 2.8 USGPM (10.6 LPM)
Calculated production rate @ feed water of >2000 ppm 25ºC, average system pressure @ 230psi, 50 % recovery, inlet pressure of 50 psi.
WASTE PRODUCTION RATE: Recovery Rate @ 50% Feed Water >2000 TDS RSLHP7200 6.3 USGPM (15.9 LPM)
MEMBRANE CROSSFLOW: RSLHP7200: (1) 8 USGPM (30 LPM) RECOMMENDED FEED WATER PRETREATMENT SPECIFICATIONS: TDS: < 4000 TDS HARDNESS: < 6 gpg (103 mg/l) TOTAL IRON: < .05 ppm TANNIN: < .5 ppm CHLORINE: < .1 ppm pH: 5.5 – 9.5
ORGANIC/MICROBIOLOGICAL ACTIVITY: 0 MANGANESE: < .05 PPM
FEED WATER REQUIREMENTS: RSLHP7200: 10.5 USGPM minimum
R/O RSLHP7200
Please note: These systems are built to order so allow 6-8 weeks for delivery. Also since these are built to order, all sales are final.
