Luminor Blackcomb Cross-Over 15 gpm Rack UV System LBH5-Z122
Luminor Blackcomb Cross-Over 15 gpm Rack UV System LBH5-Z122
UV water treatment component designed to disinfect water by neutralizing bacteria and microorganisms without chemicals (20" x 4.5", 15 GPM).
Product Resources
Luminor Blackcomb Cross-Over 15 gpm Rack UV System LBH5-Z122
The Luminor Blackcomb HO 5.1 LBH5-Z122 is a high output UV system designed to deliver reliable, whole home disinfection while combining filtration and UV treatment in one integrated setup. Built for homes, cottages, and cabins, it provides strong protection against bacteria while keeping installation and maintenance straightforward.
✔️ 15 GPM high output performance for full home protection without restricting flow
✔️ Effective disinfection against E. coli and coliform bacteria

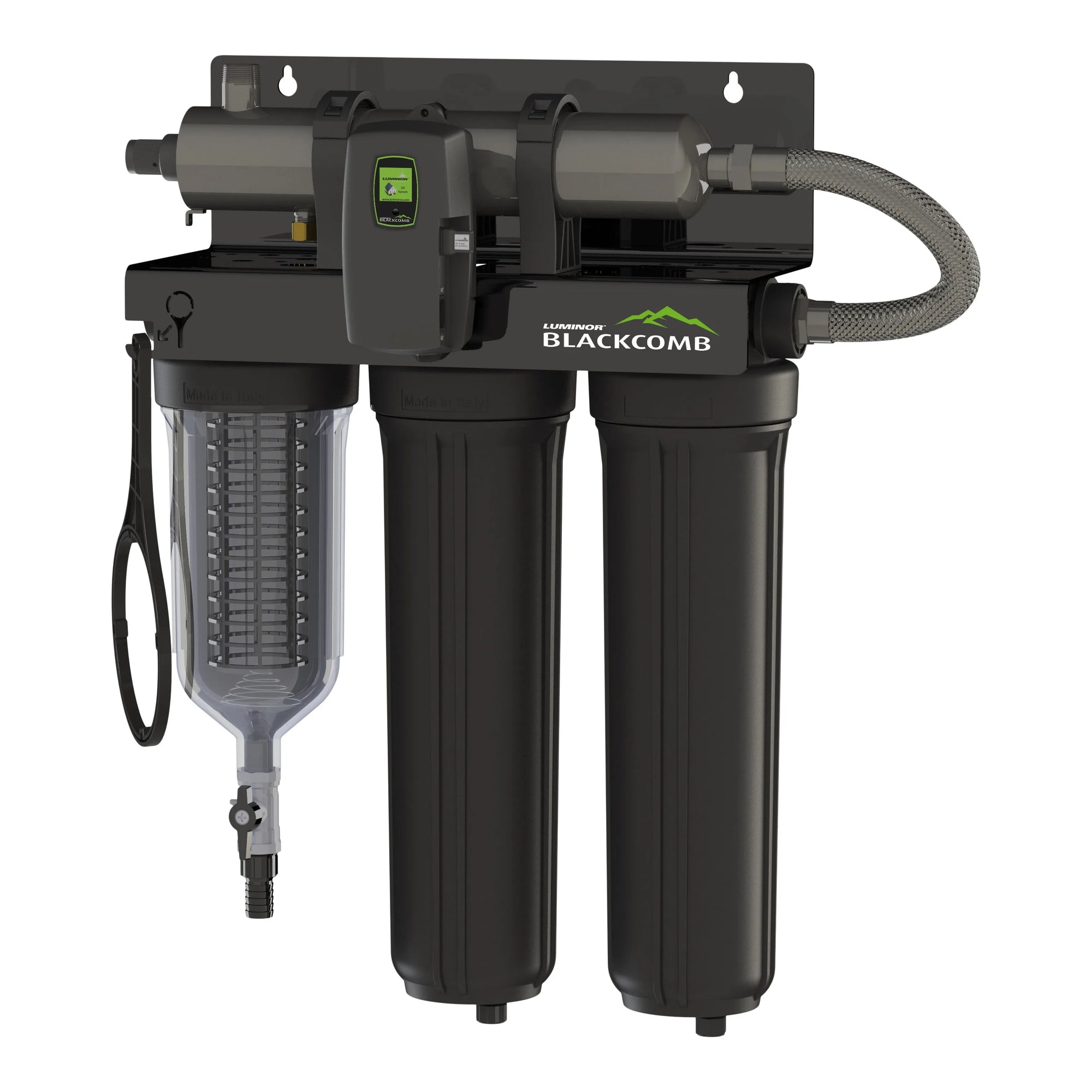

✔️ Complete system includes mesh strainer, dual filter housings, and UV chamber
✔️ Designed to combine filtration and UV treatment in one compact system
✔️ Includes 10 inch mesh strainer and two 20 inch standard filter housings
✔️ Self cleaning backwash filter helps reduce maintenance and extend system life
✔️ 316L stainless steel reactor built for durability and long term performance
✔️ Axial flow design improves UV exposure and treatment efficiency
✔️ Horizontal UV chamber reduces installation height requirements
✔️ Reversible design allows for flexible installation
✔️ 1 inch MNPT inlet and outlet connections for easy integration
✔️ Compact footprint fits a wide range of spaces
✔️ Lamp countdown timer with visible and audible alarms for maintenance reminders
✔️ Long 10,000 hour lamp life for fewer replacements
✔️ Continuous lamp life monitoring ensures consistent performance
✔️ Easy DIY installation and servicing to reduce ongoing costs
✔️ Made in Canada with high quality construction
✔️ Power consumption 57 watts
✔️ Reactor size 20 inches long by 3.5 inches wide
✔️ Compatible with optional upgrades including UV concierge, UV sensor, solenoid module, remote alarm module, and cooling fan
✔️ Warranty includes 10 years on the stainless steel reactor, 3 years on electronics, and 1 year on lamp and sleeve
Please note this is a special order item with an estimated lead time of 2 to 4 weeks
Replacement lamp RL 420HO
Replacement sleeve RQ 420

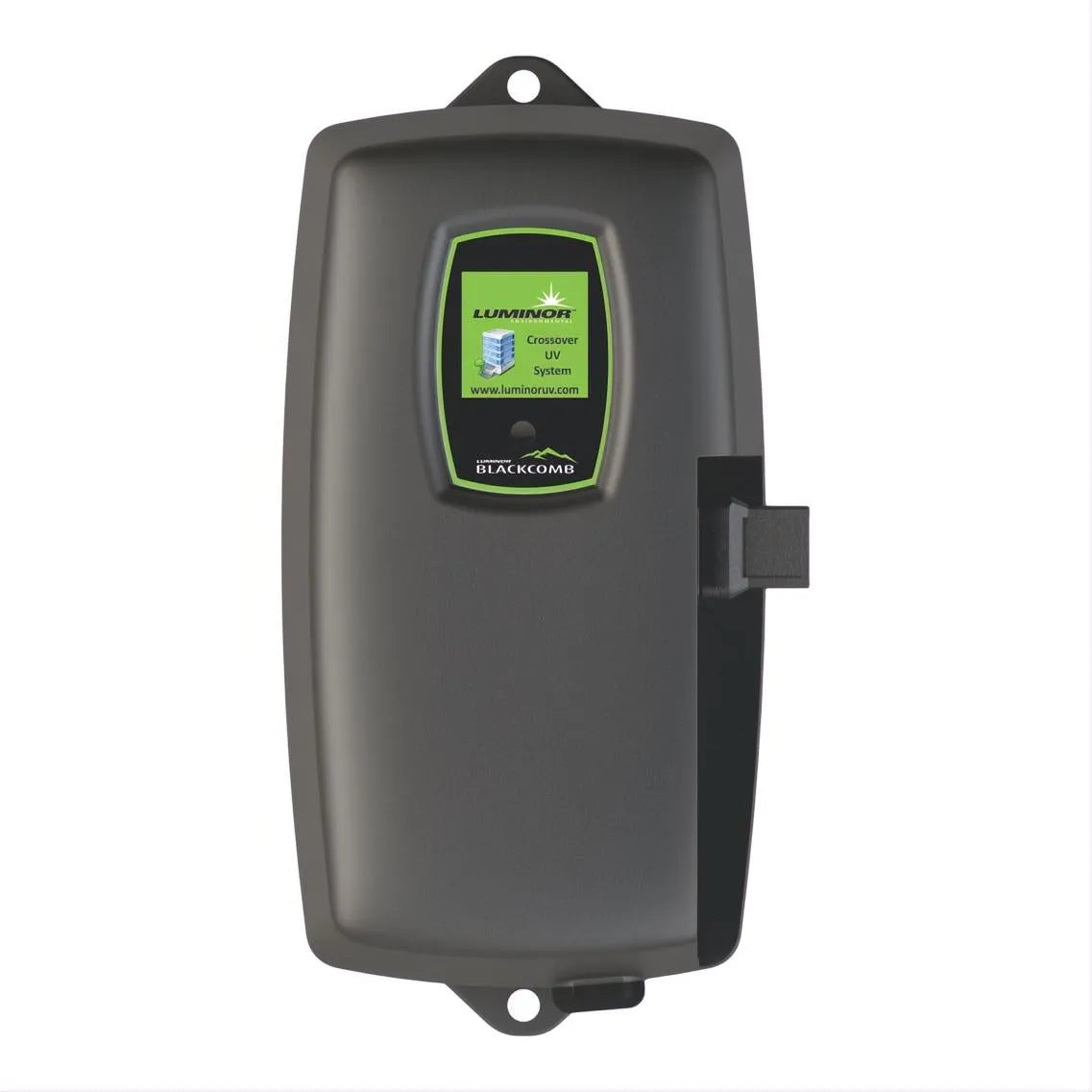

Controller RCHO 56.12
Product number UVS LBH5 Z122
