Waterite Vectamaxx RSX 700 Reverse Osmosis System
Rated for 700 gallons per day production of Reverse Osmosis Water
VOLTAGE: 110VAC/60hz, optional 220VAC/60hz
SERVICE AMPS: 7.5 A at 110VAC 3.8A at 220VAC
White enamel mild sttel frame, rubber leveling feet
FRAME DIMENSIONS:
Height 34.25" (87cm)
Width 19" (48.25cm)
Depth 19.5”" (49.5cm)
FEED WATER INLET: 3/8” Tube
WASTE WATER OUTLET: 3/8” Tube
PRODUCT WATER OUTLET: 3/8” Tube
LOW PRESSURE SWITCH: 110VAC/60hz, low cut-out @ 15 psi
DRIVE PUMP MOTOR: 110VAC/60hz, type 48Y frame, 1725 rpm
Rotary vein type ½ HP
DRIVE PUMP: 137 GPH @ 150 psi
RECIRCULATION VALVE: 304 SST needle valve, internally bypassed, locking nut on stem, brass seated, o-ring packing
SYSTEM FITTINGS: 303 SST / Nickel Plated Brass
PREFILTRATION HOUSING: 1 X Polypropylene, 10”x4”,
FILTER CARTRIDGE: Melt-blown spun polypropylene, 5-micron
MEMBRANE HOUSING: 304 SS body, groove clamp enclosures, 3/8”
Complete specifications below

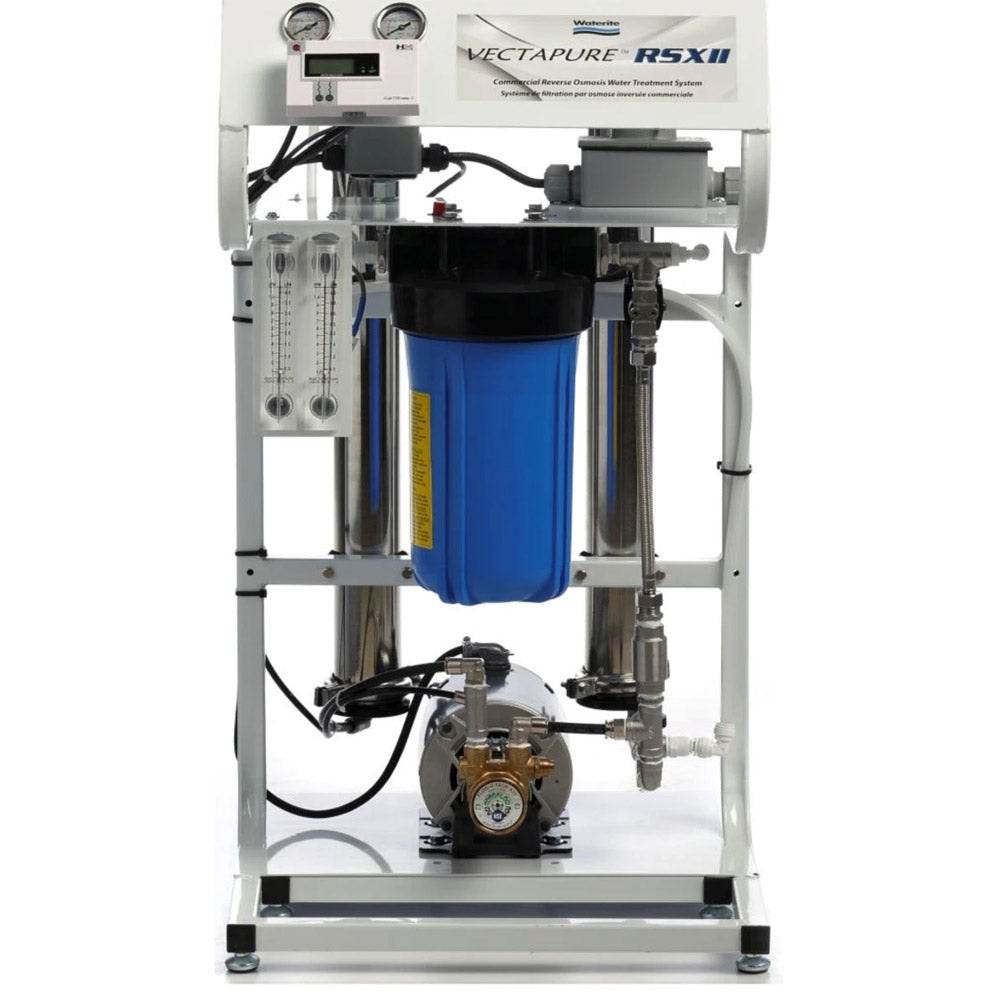

(shown with optional TDS and flow meters)
Product Number R/O RSX 700
Please note: These systems are built to order so allow 6-8 weeks for delivery. Also since these are built to order, all sales are final.
